MIL Circular vs. Mini FAKRA Connectors

While both are used to transmit high-speed and high-frequency signals, MIL circular and mini FAKRA connectors couldn’t be any different. MIL connectors are built according to military standards, meaning they are high-performance, robust connectors that can withstand harsh environmental and external conditions. But mini FAKRA connectors are small coaxial connectors that are used to transmit data at high speeds in vehicle wireless communication systems. Here’s a more detailed look at the differences between these two types of connectors.

MIL Circular connectors are rugged, military-grade connectors built for harsh environments, while Mini FAKRA connectors are compact, automotive-grade RF connectors ideal for high-frequency signal transmission in tight spaces. They serve very different purposes — MIL for durability and power, Mini FAKRA for space-saving and signal precision.

What you’ll learn in this article:
You’ll learn the core differences between MIL Circular and Mini FAKRA connectors. You’ll understand where each connector is commonly used. You’ll also discover which is better for specific applications like defense or automotive electronics.

Excerpt of MIL Circular vs. Mini FAKRA Connectors

Connectors are not one-size-fits-all — especially in industries like defense and automotive. MIL Circular connectors are known for their robust build and ability to withstand vibration, shock, and environmental extremes. They’re perfect for military, aerospace, and industrial machinery. On the flip side, Mini FAKRA connectors are tailored for RF communication in compact automotive systems like ADAS, GPS, and infotainment units. They offer high-frequency performance in color-coded, secure-lock designs. Choosing the right one depends on the use case — rugged reliability vs. high-frequency data in tight spots.

MIL Circular vs. Mini FAKRA – Key Differences & Use Cases

• MIL Circular connectors are built to MIL-spec standards and offer waterproof, dustproof durability
• Mini FAKRA connectors are optimized for RF signal transmission up to 9 GHz
• MIL connectors are used in military, aerospace, and industrial automation
• Mini FAKRA dominates in automotive systems like cameras, sensors, and infotainment
• MIL Circular offers bulk and power; Mini FAKRA offers compactness and precision

What Are MIL Circular Connectors?

MIL is the short form of military. These military standard or spec connectors are specifically made to handle the challenging conditions military equipment and vehicles are exposed to during operations. They consist of a plug and receptacle (mating pair), where one of the halves is floating to reduce mechanical stress.

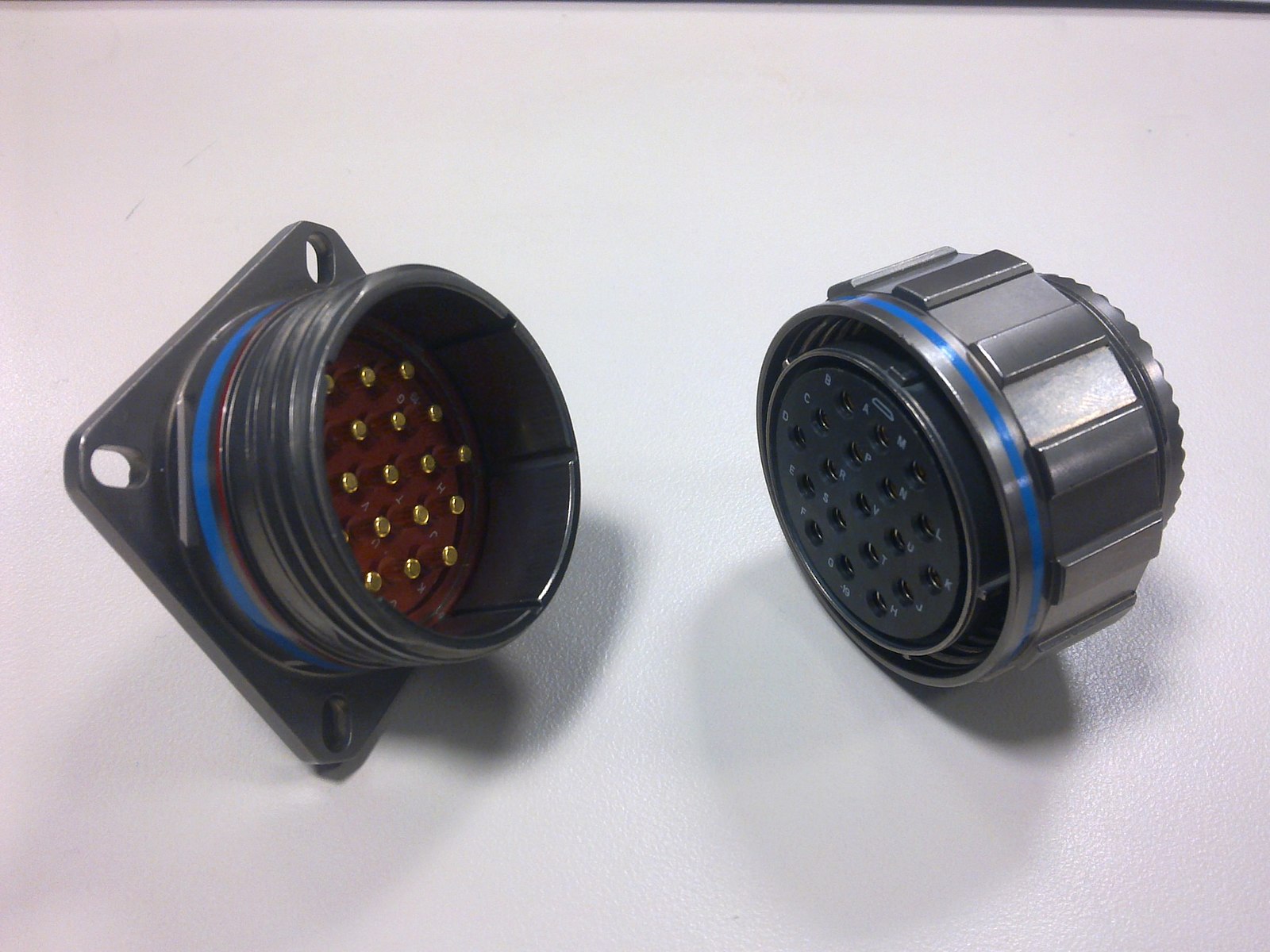

A MIL-DTL-38999 circular connector with its mating pair

Although there are MIL circular connectors for optical fiber wires, the most common type is the electrical type, which has phosphor bronze or beryllium copper connectors plated with non-corrosive but highly conductive metals, such as gold. These pins are contained by dielectric insulators and housed in an aluminum-plated shell for protection. The electrical connection between the male and female ends can be soldered or crimped, and the shell has a keying feature to prevent mis-mating.

What Are Mini FAKRA Connectors?

A mini FAKRA connector

FAKRA connectors are special automotive connectors that are used for Bluetooth, GPS, and other wireless communication systems in vehicles. They are basically high-performance RF coaxial connectors because they are designed to handle high-speed, high-frequency signals.

Mini FAKRA connectors are compact versions of this, providing up to 80% space saving while providing high-speed data transmission (up to 28Gbps and 20GHz). Cable assemblies (wire harnesses) with mini FAKRA connectors are more common in vehicles than the standard type because cars have limited space, yet they are poised to bring on board more wireless connectivity for features like V2X and ADAS.

MIL Circular vs. MINI FAKRA Connectors

Design

MIL circular connectors are designed to meet military standards like MIL-DTL-5015 and MIL-DTL-22992. So they have more robust designs with features like anti-rotation mechanisms and bayonet couplings to create secure electrical connections.

Mini FAKRA, on the other hand, are straight or right-angle push-on connectors that are not as robust. For instance, they feature plastic instead of metal housings that do not lock when engaged. They are designed for quick unlocking, while MIL circular connectors have a secure locking mechanism.

Size and Weight

The features required to meet military specifications make MIL circular connectors larger and heavier than mini FAKRA connectors. Plus, mini FAKRA connectors are compact versions of the standard type built for space-saving applications, so the difference is quite significant.

Cost

The extra requirements that come with meeting military standards, such as using metal housings instead of plastic and incorporating bayonet couplings with locking mechanisms, make MIL circular connectors more expensive than their mini FAKRA counterparts.

Environmental Resistance

MIL circular connectors are built to withstand dust, moisture, extreme vibrations, and other harsh environmental conditions without shorting or any other electrical failure. Mini FAKRA connectors also have some built-in resistance capabilities, such as the ability to withstand vibrations and high temperatures in vehicles, but they cannot match what MIL connectors offer.

Application

MIL connectors are typically used in defense systems and equipment, aerospace, marine, and industrial applications, where the environmental conditions are extremely harsh. But mini FAKRA connectors are more common in automotive applications, specifically in wireless communication modules, telematics systems, in-vehicle WiFi, and antennas.

Conclusion
